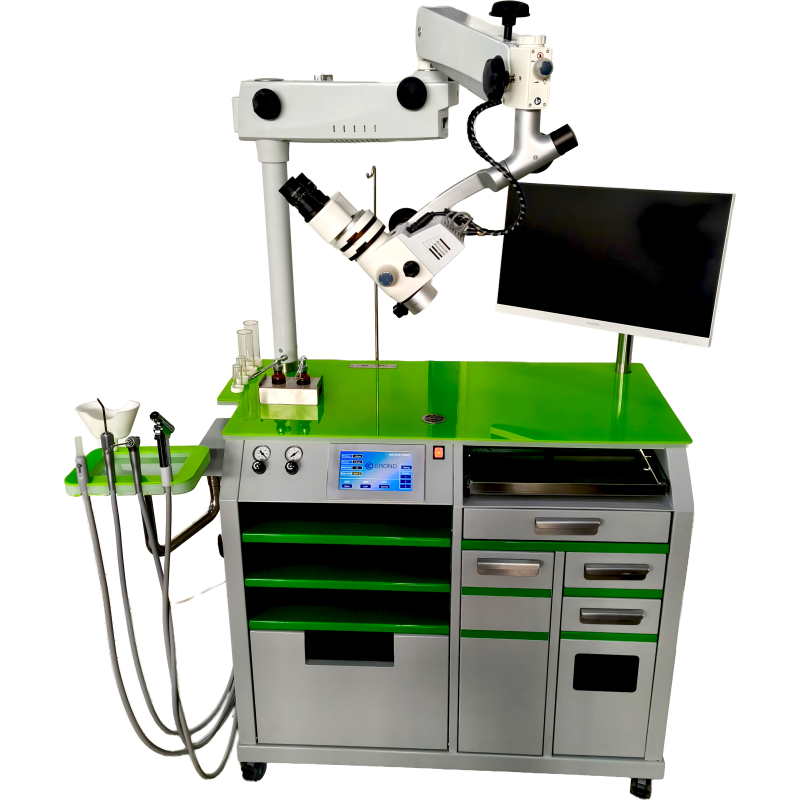

Multifunctional ENT Unit

General Description

The Erond ENT Unit is a multifunctional otorhinolaryngology examination system designed to ensure maximum efficiency, precise control and comfort for both the physician and the patient. Its compact design, robust construction and integration of modern technologies make this unit a complete solution for modern ENT practices.

With optimized dimensions (1000 × 600 × 880 mm), the unit provides an organized workspace and easy access to all essential functions during ENT procedures.


Standard equipment

The unit is delivered in a fully functional configuration, including:

  • Mirror heating system (200 W) with timer function – 150 sec
  • Water spray system with cannula
  • Compressed air cannula (max. flow 50 l/min, adjustable pressure range 0–2.5 bar)
  • Suction system with negative pressure approx. -0.8 bar, two suction handpieces
  • Secretion collection container – 2 liters (manual emptying)
  • Clean water tank – 1.2 liters, with preheating system up to 37 ±2 °C and sterilization
  • 7” HD capacitive touchscreen
  • Touchscreen with integrated microcomputer for control and coordination of unit functions
  • USB charging module (2 × 5V/2A)
  • Headlight holder
  • Rigid/flexible endoscope holder
  • 4 × Ø50 mm wheels with brakes for safe mobility
  • Robust electrostatically powder-coated steel structure
  • Multiple storage and organization spaces, smooth-surface worktop

                  • Drawer for frequently used instruments
                  • Waste compartment
                  • 3 shelves for auxiliary equipment
                  • Holders for rigid and flexible endoscopes
                  • Storage drawers for instruments and dressings


Optional equipment
- Light source
- HD/Full HD camera module with video/photo recording function (USB memory storage)
- Microscope support
- Microscope with 3 or 5 magnification
- Monitor support

GET OFFER

-->
Parameter Description
Power supply 220-240 V AC, 50 Hz
Maximum power consumption Approx. 1.5 kW (with all functions active)
Weight Approx. 100 kg (depending on configuration)
Water supply Manual, 1.2 liter tank
Water temperature Max. 37 ±2 °C
Secretion container capacity 2 liters
Compressed air flow rate Max. 50 liters/min @ 2.5 bar
Suction system Approx. -0.8 bar
Operating noise ≤ 50 dB
Operating temperature +10 °C - +35 °C
Storage temperature +5 °C - +45 °C
